View In:   ArcGIS Online Map Viewer

Name: PLSS Sections

Display Field: Township_Section

Type: Feature Layer

Geometry Type: esriGeometryPolygon

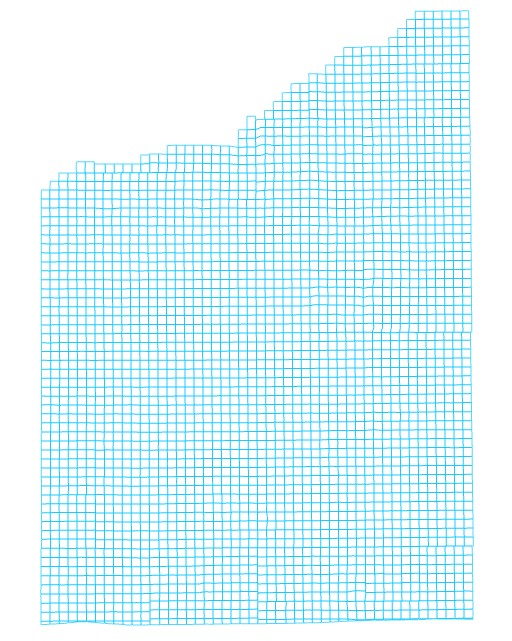

Description: PLSS Sections: This dataset represents the GIS Version of the Public Land Survey System, specifically Sections located in Jackson County, Oregon. The primary source for the data is cadastral survey records housed by the BLM supplemented with local records and geographic control coordinates from states, counties as well as other federal agencies such as the USGS and USFS. The data has been converted from source documents to digital form and transferred into a GIS format that is compliant with FGDC Cadastral Data Content Standards and Guidelines for publication. This data is optimized for data publication and sharing rather than for specific "production" or operation and maintenance. This data set includes the following: PLSS Fully Intersected (all of the PLSS feature at the atomic or smallest polygon level), PLSS Townships, First Divisions and Second Divisions (the hierarchical break down of the PLSS Rectangular surveys) PLSS Special surveys (non rectangular components of the PLSS) Meandered Water, Corners and Conflicted Areas (known areas of gaps or overlaps between Townships or state boundaries). The Entity-Attribute section of this metadata describes these components in greater detail. *Note: Jackson County Surveyor's Office derived cohesive section polygons from PLSS First Division polygons provided by BLM.

Service Item Id: aebafdc430644d43b07cf31b385e09c9

Copyright Text: Bureau of Land Management (BLM) Oregon State Office, Jackson County Surveyor's Office

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 600000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 191747.4947506562
YMin: 92363.6128608957
XMax: 447776.10433070734
YMax: 456049.05183727294
Spatial Reference: 6827  (6827)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [252, 223, 199, 0]
Outline:
Style: esriSLSSolid
Color: [0, 197, 255, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 168, 132, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: -6
Size: 12
Font Family: Corbel
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 100000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: true
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• FRSTDIVID ( type: esriFieldTypeString, alias: First Division Identifer, editable: true, nullable: true, length: 25, defaultValue: null, modelName: FRSTDIVID )
• FRSTDIVTYP ( type: esriFieldTypeString, alias: First Division Type Code, editable: true, nullable: true, length: 2, defaultValue: SN, modelName: FRSTDIVTYP )
• Township_Section ( type: esriFieldTypeString, alias: Township-Section, editable: true, nullable: true, length: 50, defaultValue: null, modelName: FRSTDIVTXT )
• FRSTDIVLAB ( type: esriFieldTypeString, alias: Section Label, editable: true, nullable: true, length: 10, defaultValue: null, modelName: FRSTDIVLAB )
• Alt_Section_Label ( type: esriFieldTypeString, alias: Alt Section Label, editable: true, nullable: true, length: 16, defaultValue: null, modelName: PLSSID )
• InCounty ( type: esriFieldTypeString, alias: InCounty, editable: true, nullable: true, length: 3, defaultValue: Yes, modelName: SURVTYPTXT )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• EditDate ( type: esriFieldTypeDate, alias: EditDate, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EditDate )
• Shape__Area ( type: esriFieldTypeDouble, alias: Shape.STArea(), editable: false, required: true, nullable: true, defaultValue: null, modelName: Shape.STArea() )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.STLength(), editable: false, required: true, nullable: true, defaultValue: null, modelName: Shape.STLength() )

Templates:

• Name: PLSS Sections
  Description:
  Prototype:
  EditDate: null
  FRSTDIVID: null
  FRSTDIVTYP: SN
  Township_Section: null
  FRSTDIVLAB: null
  Alt_Section_Label: null
  InCounty: Yes

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query,Extract

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
