Name: PLSS Special Surveys

Display Field: SURVTYP

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: PLSS Special Survey: This dataset represents the GIS version of the Public Land Survey, specifically Non-Rectangular Surveys, including Donation Land Claims (DLC) and mineral surveys/claims (MS) located in Jackson County, Oregon. The primary source for the data is cadastral survey records housed by the BLM supplemented with local records and geographic control coordinates from states, counties as well as other federal agencies such as the USGS and USFS. The data has been converted from source documents to digital form and transferred into a GIS format that is compliant with FGDC Cadastral Data Content Standards and Guidelines for publication. This data is optimized for data publication and sharing rather than for specific "production" or operation and maintenance. Jackson County Surveyor's Office may make discretionary edits to the BLM-provided dataset as needed for improved accuracy or utility by County users.

Service Item Id: 5da77d2b346749eead4d5ae0bac53b32

Copyright Text: Bureau of Land Management (BLM) Oregon State Office, Jackson County Surveyor's Office

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 300000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 191939.38418635353
YMin: 93231.31299212575
XMax: 431674.8759842515
YMax: 404475.43602362275
Spatial Reference: 6827  (6827)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: SURVTYP
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: DC
  Label: Donation Land Claim
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [130, 130, 130, 0]
  Outline:
  Style: esriSLSSolid
  Color: [230, 152, 0, 255]
  Width: 1
• Value: DC-AB
  Label: Donation Land Claim (Abandoned)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [130, 130, 130, 0]
  Outline:
  Style: esriSLSDash
  Color: [230, 152, 0, 255]
  Width: 1
• Value: MS-EX
  Label: Mineral Survey (Multiple Lodes)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [130, 130, 130, 0]
  Outline:
  Style: esriSLSSolid
  Color: [205, 102, 102, 255]
  Width: 1
• Value: MS
  Label: Mineral Survey Lode
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 255, 190, 0]
  Outline:
  Style: esriSLSSolid
  Color: [215, 158, 158, 255]
  Width: 1
• Value: MS-AP
  Label: Mineral Survey Lode (Approximated)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [130, 130, 130, 0]
  Outline:
  Style: esriSLSDash
  Color: [215, 158, 158, 255]
  Width: 1
• Value: O
  Label: Other Special Survey
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 255, 190, 0]
  Outline:
  Style: esriSLSSolid
  Color: [112, 68, 137, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [230, 152, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 9
Font Family: Calibri
Font Style: italic
Font Weight: bold
Font Decoration: none

Min. Scale: 45000.0
Max. Scale: 0.0
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [205, 102, 102, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Calibri Light
Font Style: italic
Font Weight: normal
Font Decoration: none

Min. Scale: 20000.0
Max. Scale: 0.0
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [112, 68, 137, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 24000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SURVTYP ( type: esriFieldTypeString, alias: Survey Symbol Class, length: 5 )
• SURVTYPTXT ( type: esriFieldTypeString, alias: Survey Type, length: 50 )
• Township ( type: esriFieldTypeString, alias: Township, length: 15 )
• SURVNO ( type: esriFieldTypeString, alias: Survey Number, length: 10 )
• Survey_ID ( type: esriFieldTypeString, alias: Special Survey ID, length: 50 )
• Survey_Alias ( type: esriFieldTypeString, alias: Special Survey DETAILS, length: 50 )
• SURVLAB ( type: esriFieldTypeString, alias: Survey Label, length: 50 )
• SURVSUF ( type: esriFieldTypeString, alias: Suffix, length: 5 )
• SOURCEREF ( type: esriFieldTypeString, alias: Source Reference, length: 100 )
• SourceDocDate ( type: esriFieldTypeString, alias: Source Doc Year, length: 10 )
• SOURCEDATE ( type: esriFieldTypeDate, alias: Source Doc Date, length: 8 )
• RECAREANO ( type: esriFieldTypeDouble, alias: Record Area (Acres) )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• EditDate ( type: esriFieldTypeDate, alias: EditDate, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

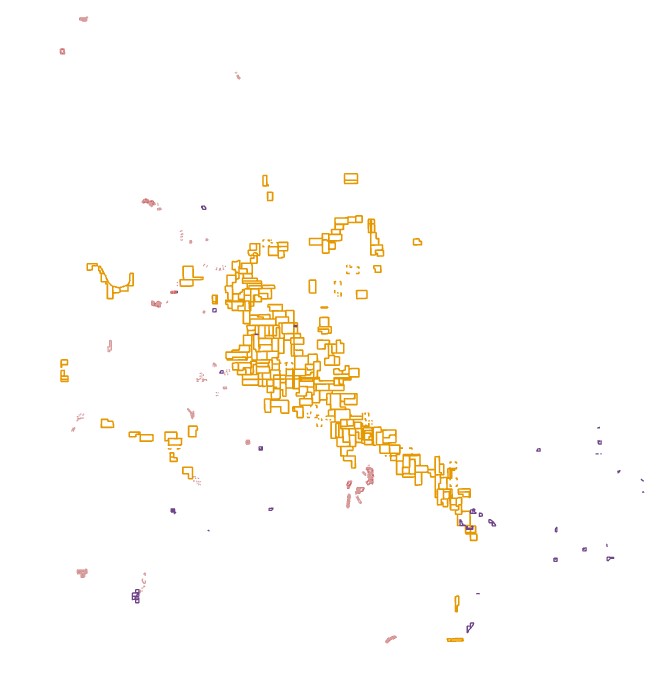

  Iteminfo   Thumbnail   Metadata
